Quick Details

  • Shape: Spur
  • Place of Origin: Japan
  • Model Number: S30B
  • Brand Name: KG STOCK GEARS
  • Material: Brass (JIS C3604)
  • Module: 0.3
  • System of accuracy: JIS B 1702 class 5
  • No. of teeth: 14 to 120
  • EU RoHS: Compliant
  • Standard / Nonstandard: Standard

Packaging & Delivery

Packaging Details Safely paceked with enough cushioning.



CATALOGUE



Dimensions : mm

Catalogue Number

No. of

Teeth

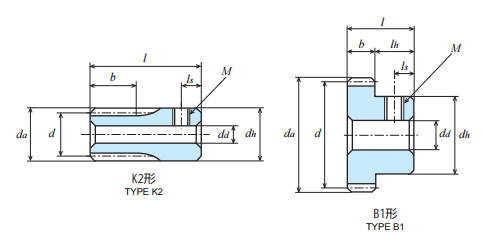

Type

ddddabl
S30B 14K+040214K2φ2φ4.2φ4.8412
S30B 15K+040215K2φ2φ4.5φ5.1412
S30B 16K+040216K2φ2φ4.8φ5.4412
S30B 18K+040218K2φ2φ5.4φ6412
S30B 20B+030220B1φ2φ6φ6.638
S30B 24B+030224B1φ2φ7.2φ7.838
S30B 25B+030225B1φ2φ7.5φ8.138
S30B 28B+030228B1φ2φ8.4φ938
S30B 30B+030230B1φ2φ9φ9.638
S30B 32B+020232B1φ2φ9.6φ10.228
S30B 35B+020235B1φ2φ10.5φ11.128

S30B 36B+0203

36B1φ3φ10.8φ11.428

S30B 40B+0203

40B1φ3φ12φ12.628
S30B 45B+020345B1φ3φ13.5φ14.128

S30B 48B+0203

48B1φ3φ14.4φ1528
S30B 50B+020350B1φ3φ15φ15.628
S30B 56B+020356B1φ3φ16.8φ17.428

S30B 60B+0203

60B1φ3φ18φ18.628
S30B 64B+020364B1φ3φ19.2φ19.828
S30B 66B+020366B1φ3φ19.8φ20.428

S30B 70B+0203

70B1φ3φ21φ21.628
S30B 72B+020372B1φ3φ21.6φ22.228
S30B 75B+020375B1φ3φ22.5φ23.128
S30B 80B+020380B1φ3φ24φ24.628

S30B 90B+0203

90B1φ3φ27φ27.628
S30B 96B+020396B1φ3φ28.8φ29.428
S30B 100B+0203100B1φ3

φ30

φ30.6

28

S30B 108B+0203

108B1φ3

φ32.4

φ33

28
S30B 120B+0203120B1φ3φ36φ36.628



 For more details of this product, please refer to our standard gear catalogue.



CLICK TO GET GEAR CATALOGUE

( You will find URL of our catalogue )



Our standard gear catalogue help you find suitable gears with detailed information.



1 Product Name / 2 Size of module / 3 System of accuracy / 4 Drawing

5 Material / 6 Catalogue Number / 7 Dimentional table / 8 Strength calculation table

If you are not able to find suitable gears, please feel free to contact us with information about the gears you are looking for.

We will find the suitable gears instead of you.
